LED Linear Trunking System

Indoor

The Continuous Row Systems and individual batten luminaires is a continuous LED lighting system. All system components, trunking rail and luminaire inserts are perfectly matched according to standard Trunking  system dimensions. With JK-TOP Trunking Sysyem, all components are matched to various  system dimensions and can thus be combined with each other at random. Socket outlet inserts, emergency lighting units, tracks, spotlights, LED modules and luminaires are available as well as other accessories. Easy to customize and fit yet providing a maximum of combination options are major benefits of continuous-row lighting systems. Our batten luminaires feature a plain, pared-down design. A versatile and efficient continuous-row lighting system providing intelligent solutions for any lighting task, from LED light lines to emergency lighting.

JK-TOP LED Linear Trunking System saves both time and costs due to its low installation cost. Triple, double and single-length rails can be combined to comply with the space involved.

LED Linear Trunking System, Batten Luminaires Features

  • Low installation cost – everything in one box and installation is tool-less
  • The high light efficiency of 130 lm/W makes reduction on energy consumption and additional cost
  • Ra >80
  • CCT: 3,000K/4,000K/5,000K/6,000K
  • A wide range of optics from 20° to 120° distribution, as well as asymmetric and double asymmetric distribution
  • Emergency versions available
  • 1-10 Volt Dimming, DALI  & Multi-Sensor versions available
  • Different length with various power is available
  • Tracklight Rail available
  • Mounting Options: chain suspended, cord suspended, rod suspended or surface mounted
  • 3 colour options: Black, White and Silver

Applications

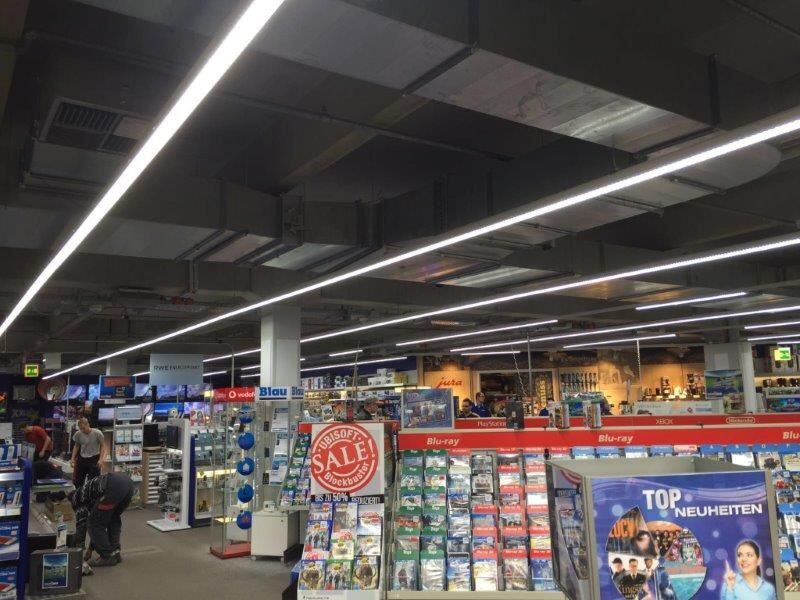

  • Commercial
  • Industrial
  • Warehouse
  • Other indoor lighting
  • Voltage: AC100-277V / AC180-277V
  • Power: 20 Watt - 65 Watt
Specifications
LED Brand:Samsung
Power:20 Watt - 65 Watt
Power Factor:PF>0.95
Voltage:AC100-277V / AC180-277V
Lumens:130 lm/w
Color Temperature:WW2800-3500K, NW4000-4500K, PW5000-5500K, CW6000-6500K
CRI:Ra>80 up to Ra 95
Beam Angle:25°/45°/60°/90°/120°
Ambient Temperature:Operating Temperature: -20~+40 ℃ Storage Temperature: -40~+85 ℃
Dimmable:TRIAC Dimmable, DALI Interface
Housing:Aluminium Alloy
Lifespan:50000Hrs
Warranty:5 Years
Certificates
  • CE
  • EMC
  • RoHS
  • TUV
