LED Wallwasher for indoor or outdoor

LED Wallwasher

Our indoor or outdoor LED Wallwasher, full-color capable LED fixture is frequently used for decorative illumination of architecture and wall graze/wall wash applications. Optional integrated DMX 512 controls and settings can be accessed from the end-mounted 4-button control panel with display.

  • High brightness using 18 (6 Red, 6 Green, 6 Blue, 6 White) CREE LEDS  http://www.cree.com/
  • LED Beam Angle: 15, 30 or 45 Degrees
  • Easy to install with 150 degree rotating brackets
  • RGB/W color changing modes by DMX 512 controller
  • Self-control with pre-programmed lighting effects
  • Wave length: Red 620-625, Blue 470-475, Green 520-525
  • Extruded aluminum body with low heat generation
  • IP65 rated, applicable for outdoor applications
  • 50,000 Hour Lifespan
  • Operating temperature: -20 to +40C

Up to 144  RGB/W Cree  LED,s. LED Wallwasher is the perfect solution for lighting up mansions, theaters, casinos, gardens, bridges, shopping centers, theme parks and entertainment plazas etc. Fixture comes with two control methods: self-control and DMX control. Under self-control, it will work under the pre-programmed lighting effect.  With DMX control, it will be compatible with any DMX 512 console to meet lighting designers’ specific lighting-effect requirements. Each LED fixture ships with a 1.6′ female 3 Pin XLR Cannon-Connector adapter cable.  Six foot DMX adapter cables are available as a related product.

Technical Specifications:

  • Input Voltage: 120VAC/240VAC
  • Color: RGB/W LED Qty: up to 144 LEDs
  • Dimension: 48″ x 5.9″ x 6.7″
  • IP Rating: IP65 (applicable for dry, wet, damp environment)

Features & Benefits:

  • Super powerful and higher brightness at lower cost with up to 144pcs of ultra bright High Power Cree LED,s
  • Wide dynamic lighting beam with the dimension of 48″ x 5.9″ x 6.7″
  • IP65 , perfect for dry, wet and damp environments. Optional IP67
  • RGB/W color-changing modes controllable by most DMX 512 consoles
  • Ease of directing the light to the right spot with 180° rotary angle
  • With mounting gears and rotating for your easy installation and removal
  • Long life span of over 50,000 hours with high quality LEDs.
  • CE, RoHs, UL, ETL Rated

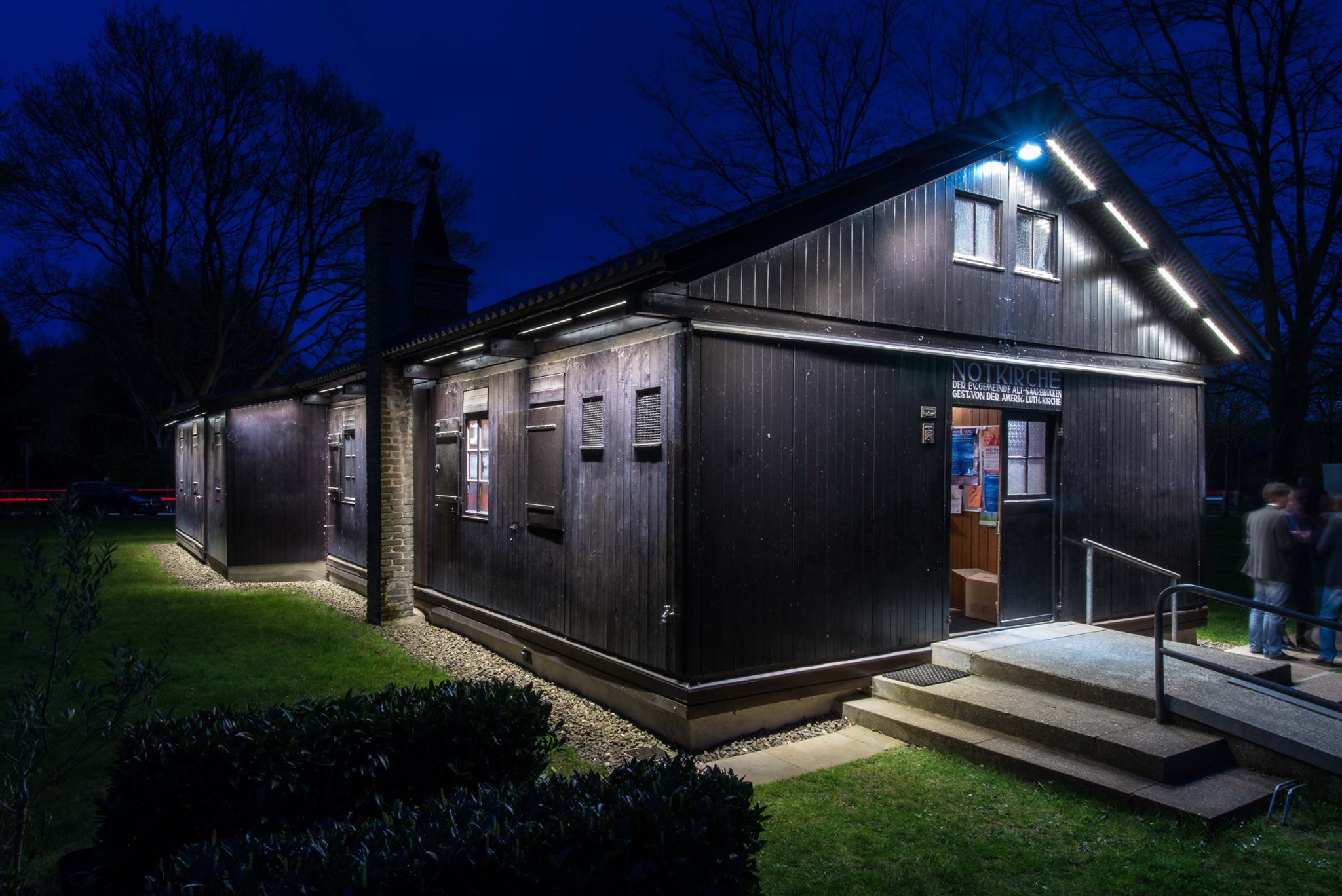

Recommended Applications: Building facade lighting (grazing lighting, flooding lighting, washing lighting) for mansions, theaters, casinos, bridges, hotels, churches and shopping centers. Indoor wash lighting (stage lighting, background lighting) for special events, concerts, clubs, hotels, theaters.
