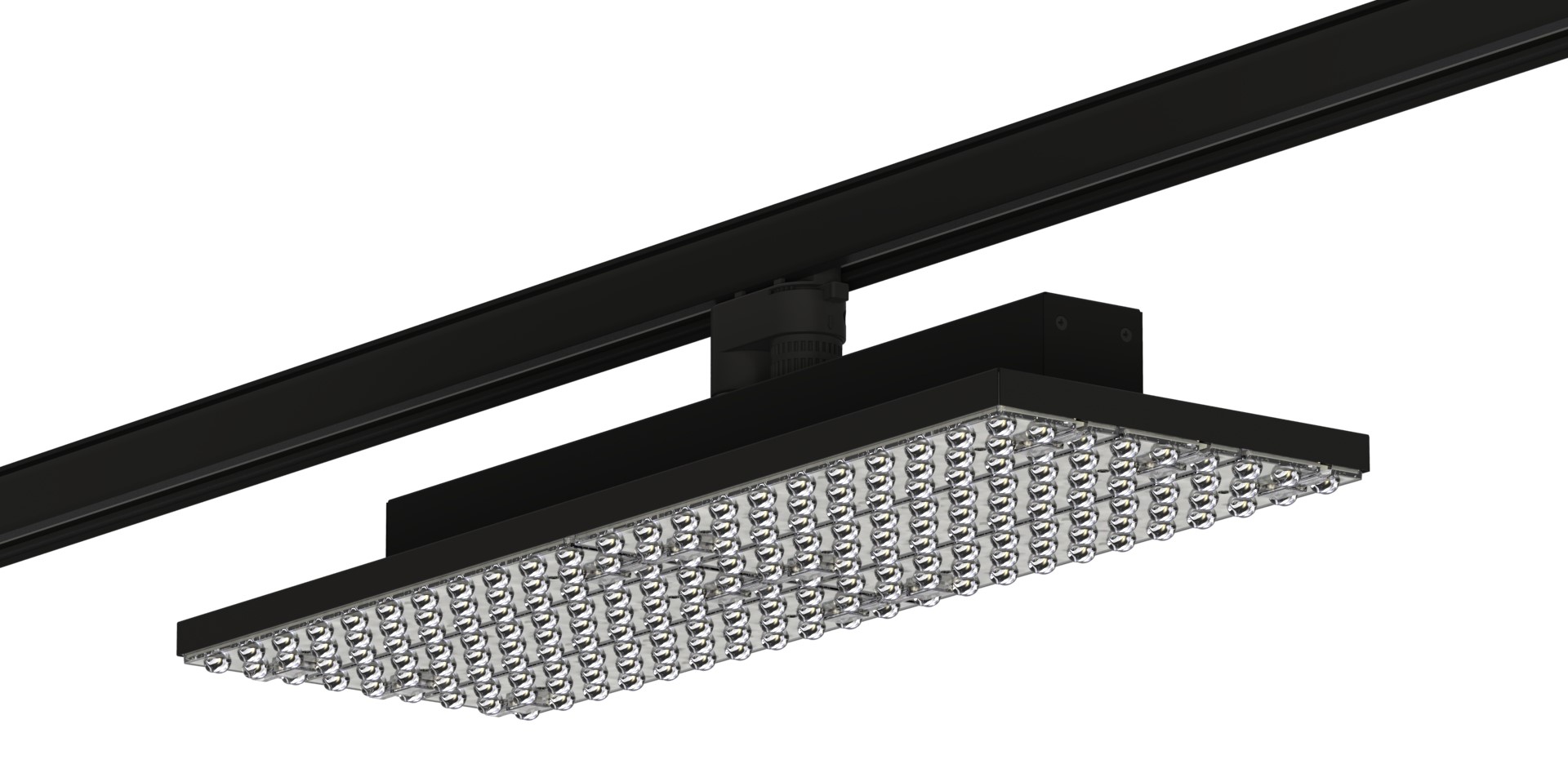

Linear High Bay Track Light


Store image differentiation by creating contrasts via adjustable Linear High Bay Track Light solutions while uniformly illuminating produce on shelves.

Optimal upgrade solution for retail stores with already installed Track Light solutions.

Track Lights are particularly good choices for retailers seeking outstanding color rendering and energy efficiency. Superior wall washing and optional DALI  dimming in a range of profile sizes and designs.

Excellent high efficient light quality matching application needs and preferences Freedom in position during and after installation.

Linear High Bay Track Light  deliver high lumens, different beam angle, intensity available and energy savings to high ceiling applications.

Perfect for highlighting products to increase sales in retail and grocery settings. Easy installation and removal.

With the endless configurations possible there will always be several ways to lighting a room with track systems.

Simply adding projectors for accent lighting to complete the lighting

Aiming angle rotatable horizontally and vertically. Architects, designers and facility managers can choose the perfect amount and color of light for each project with the added assurance of energy savings and the reliability of JKTOP engineering.

Application: Supermarkets, Hypermarkets, Large Retail, Mass Electronics and Convenience stores.

Linear High Bay Track Light Optiones: Track Standard, Track Rotatable, Pendant


Technical Details :

Power: 72W (can be adjusted by DIP switch  to 66W/62W/58W/54W/50W/46W/42W)
Luminous flux: Max.9300lm @72w
Beam angle:  6xDA25°(DA),  4xDA25°+2×90°(DC90)  4xDA25°+2×60°(DC60),  6×90°(WB)
Color Rendering Index CRI Ra:>83
SDCM: <4 Steps
Lamp Body Color:RAL9006(black) or white
IP grade:IP20
IK grade:IK06
Operating Temperature:-20℃-45℃
Humidity RH :<90%
Useful lifetime:>50,000 hours (L70B10)@25℃ Ta.

ENEC LED Driver Detailes :

ENEC Driver, CE, RoHS, Flickerfree

DALI dimming optional, 1-10 Volt dimming, Zigbee optional

Input voltage: 220-240VAC
Output voltage:27-38VDC
Output current adjustable: Dip switch
Protection class: I
Switch circle:>50,000
Start time:<0.25s
Surge protection: 2kv

  • CE
  • EMC
  • RoHS
  • TUV
